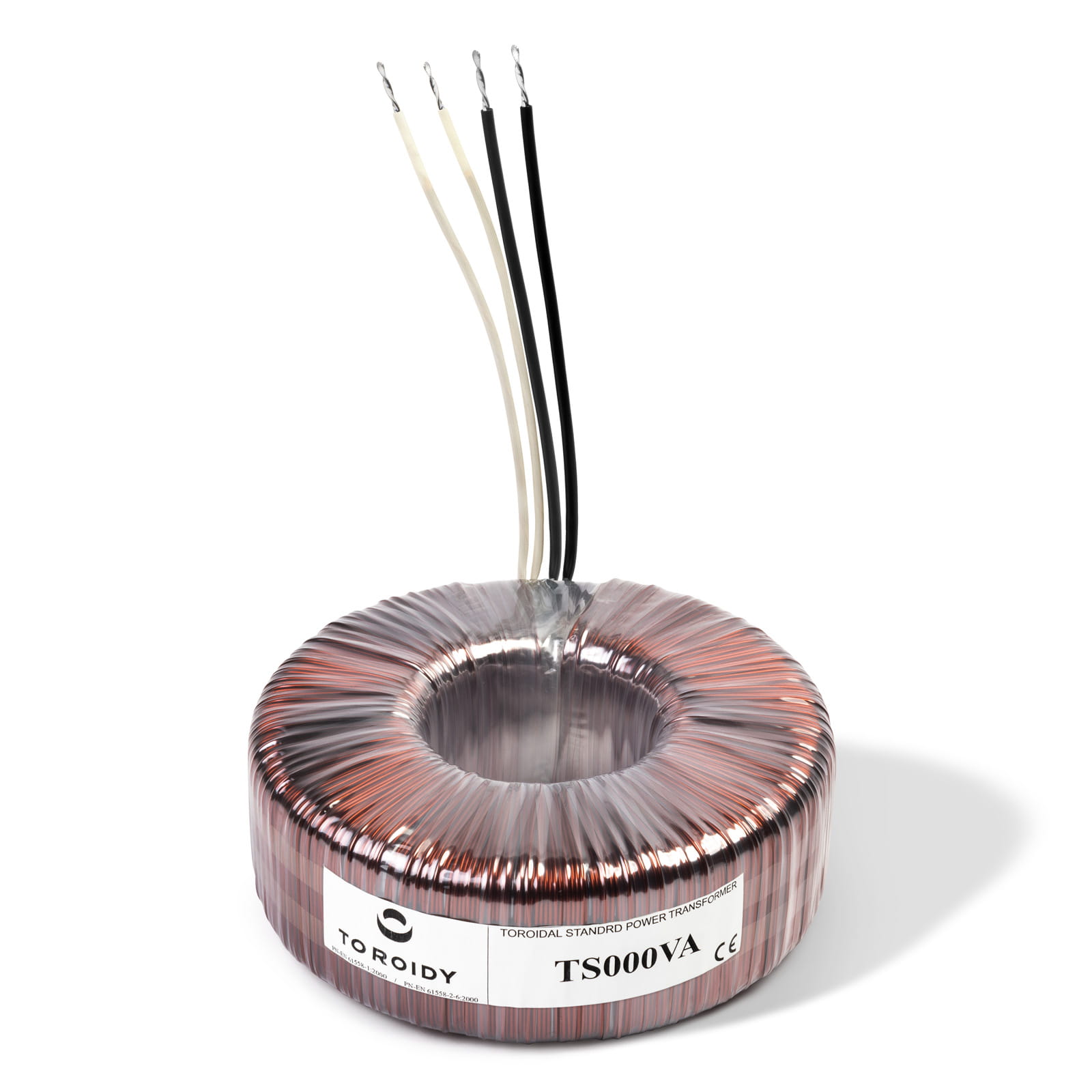

TTH1000 - Transformer TS 1000VA 230/24V H
Availability:
on sale
Dispatched within:
4 working days
Gross price:
555,03 zł
Regular price:
Price (EUR): €132.15
Net price:
451,24 zł
Regular price:
Price (EUR): €107.44
product unavailable
add to wish list
* - Field mandatory
Rating:
5
5
Manufacturer:
Product code:
95AE-547F7_20131017121038
Description
24VAC toroidal transformer for a general purpose include lightning, heating and many others.
Terminals are described on the label.
!!! WARNING !!! Transformers with a nomina power 400VA and above produce a high inrush current. We recommend using the inrush current limiter.
Technical data
| Nominal power | 1000VA |
| Input voltage | 230V |
| Output voltage | 24V |
| Insulation strengh | 4kVA |
| Outer diameter | 170mm |
| Height | 70mm |
| Weight | 6,700kg |
